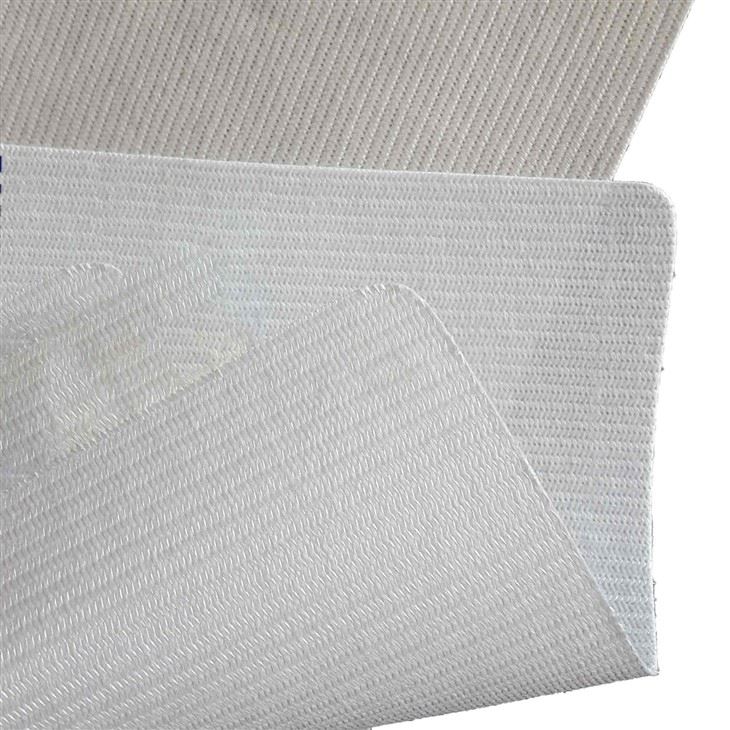

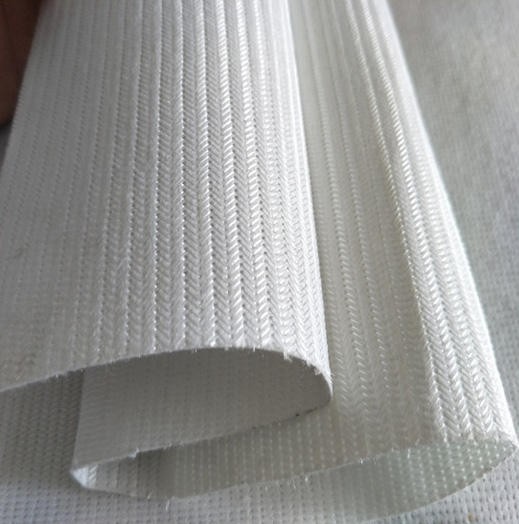

Stitch bonded polyester fabric is a high-strength non-woven textile engineered by mechanically binding a web of continuous polyester fibers (virgin PET or post-consumer rPET) using multi-bar chain-stitched polyester filament yarns. Combining the structural integrity of woven textiles with the cost efficiency of non-wovens, this composite substrate delivers high tensile strength ($\ge 480\text{ N} / 5\text{ cm}$), excellent stitch-tear resistance, controlled elongation, and thermal stability for athletic footwear linings, roofing waterproofing membranes, mattress construction, and industrial filtration. Solamni manufactures continuous roll goods in uniform weights ($60\text{ g/m}^2 - 300\text{ g/m}^2$) with tight weight tolerances ($\pm 3\%$) to ensure flawless automated multi-ply CNC cutting and thermal lamination.
Technical Specifications Matrix
| Engineering Property | Physical / Chemical Specification Benchmark | Test Standard Reference |
| Base Material Formulation | $100\%$ Polyester (Virgin PET or GRS-Certified rPET) + PET Filament Stitching | ISO 9073-1 |
| Grammage (GSM Range) | $60\text{ g/m}^2 - 300\text{ g/m}^2$ ($\pm 3\text{ g/m}^2$) | ISO 9073-2 |
| Gauge / Stitch Density | $14\text{ Gauge} / 18\text{ Gauge} / 22\text{ Gauge}$ (14 to 22 stitches per inch) | ISO 1763 |
| Thickness Options | $0.40\text{ mm} - 2.50\text{ mm}$ ($\pm 0.03\text{ mm}$) | ISO 9073-2 |
| Tensile Strength (MD / CD) | $\ge 480\text{ N / 5 cm} \ /\ \ge 380\text{ N / 5 cm}$ | ISO 9073-3 |
| Elongation at Break (MD / CD) | $20\% - 40\% \ /\ 25\% - 50\%$ (Low heat shrinkage under $180^\circ\text{C}$) | ISO 9073-3 |
| Stitch-Tear Strength | $\ge 40\text{ N}$ | ISO 4674-1 |
| Moisture & Coating Absorption | Absorbs $200\% - 300\%$ dry weight in liquid bitumens and binders | ISO 9073-6 |
| Environmental & Safety Standard | GRS (Global Recycled Standard) 4.0, REACH SVHC, Oeko-Tex Standard 100 | ISO 17025 |
Quality Control & Testing Standards
To prevent roll deformation, yarn fraying, and tensile failure during high-speed lamination or coating processes, Solamni subjects every polyester batch to automated web inspection and laboratory testing. Premium polyester staple fibers pass through precision carding systems before being locked into place by high-tenacity PET filaments via multi-bar stitch-bonding machines.
| [Carded PET Staple Fiber Formation] ---> [Multi-Bar Filament Stitch-Bonding] ---> [In-Line Laser Thickness Inspection] | [GRS & REACH Certification Release] <--- [Tensile & Thermal Stability Testing |
Our production facility incorporates continuous laser thickness and optical surface scanners across full usable roll widths ($1.0\text{ m} - 3.2\text{ m}$) to eliminate low-density spots or unstitched gaps. Every lot undergoes strict destructive testing in our laboratory:
- Tensile & Tear Resistance (ISO 9073-3): Verified under continuous machine-direction (MD) and cross-direction (CD) load to eliminate necking or structural failure under high unwinding tension.
- Thermal Shrinkage Resistance (DIN 53866): Tested at $180^\circ\text{C}$ for 5 minutes to ensure less than 1.5% dimensional change during hot-melt lamination or bitumen coating.
Industrial Application Scenarios
Solamni stitch bonded polyester fabric is engineered for demanding manufacturing sectors requiring low weight, high tear resistance, and chemical durability:
Footwear Structural Components & Linings
Used as durable shoe upper linings, strobel insole backing, counter pocket reinforcements, and tongue padding in athletic, work, and military footwear.
Roofing & Waterproofing Carriers
Applied as a high-tensile reinforcement carrier substrate for liquid waterproofing coatings, elastomeric acrylic membranes, and bitumen roofing felts.
Bedding & Furniture Upholstery
Utilized for spring pocket encasements, mattress dust covers, sofa bottom linings, and cushion backing fabrics requiring high stitch-tear strength.
Geotextiles & Industrial Filtration: Applied in soil stabilization underlayments, civil engineering drainage layers, and heavy-duty dust collector filter bags resistant to synthetic oils and mild chemicals.
