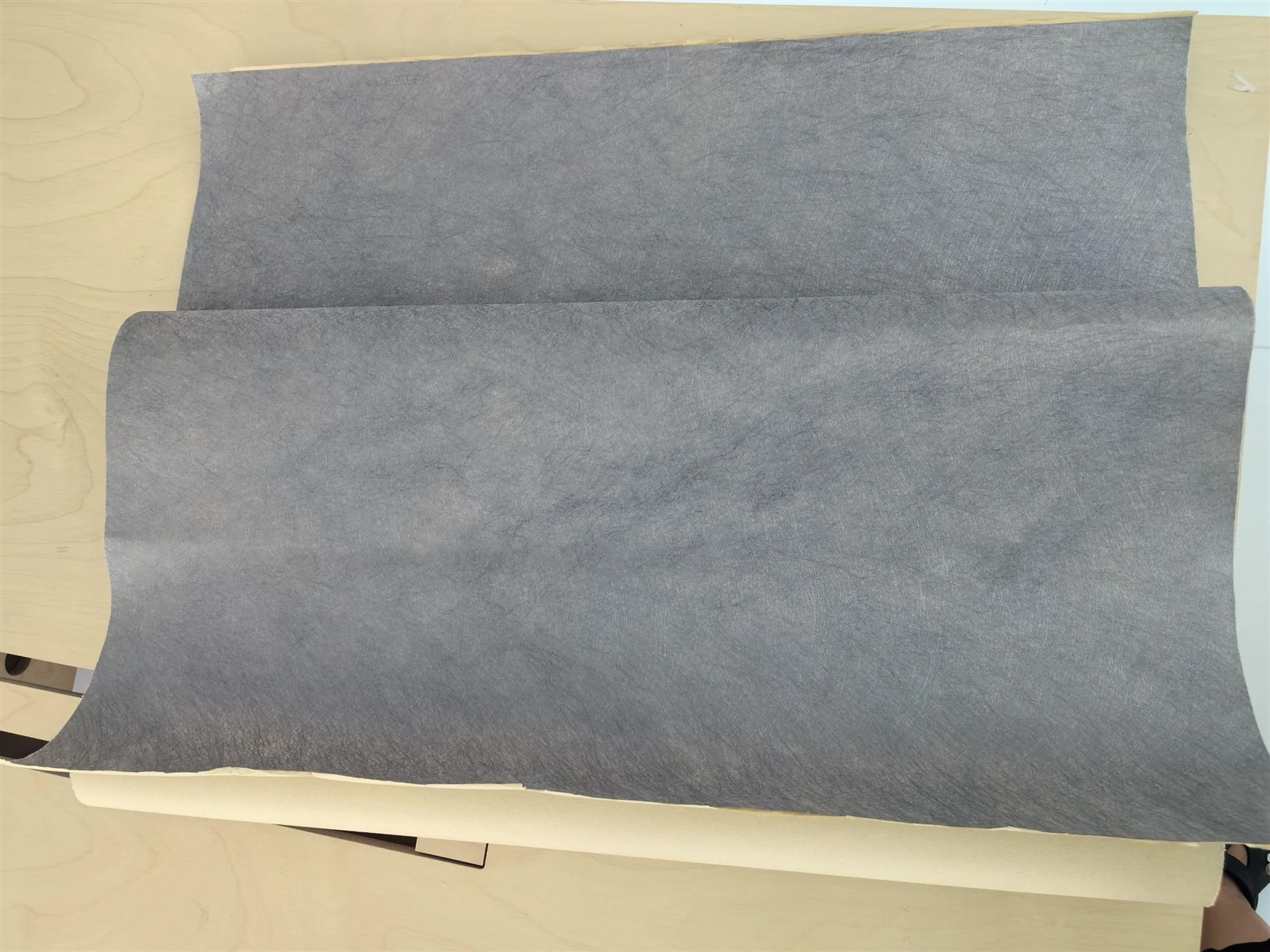

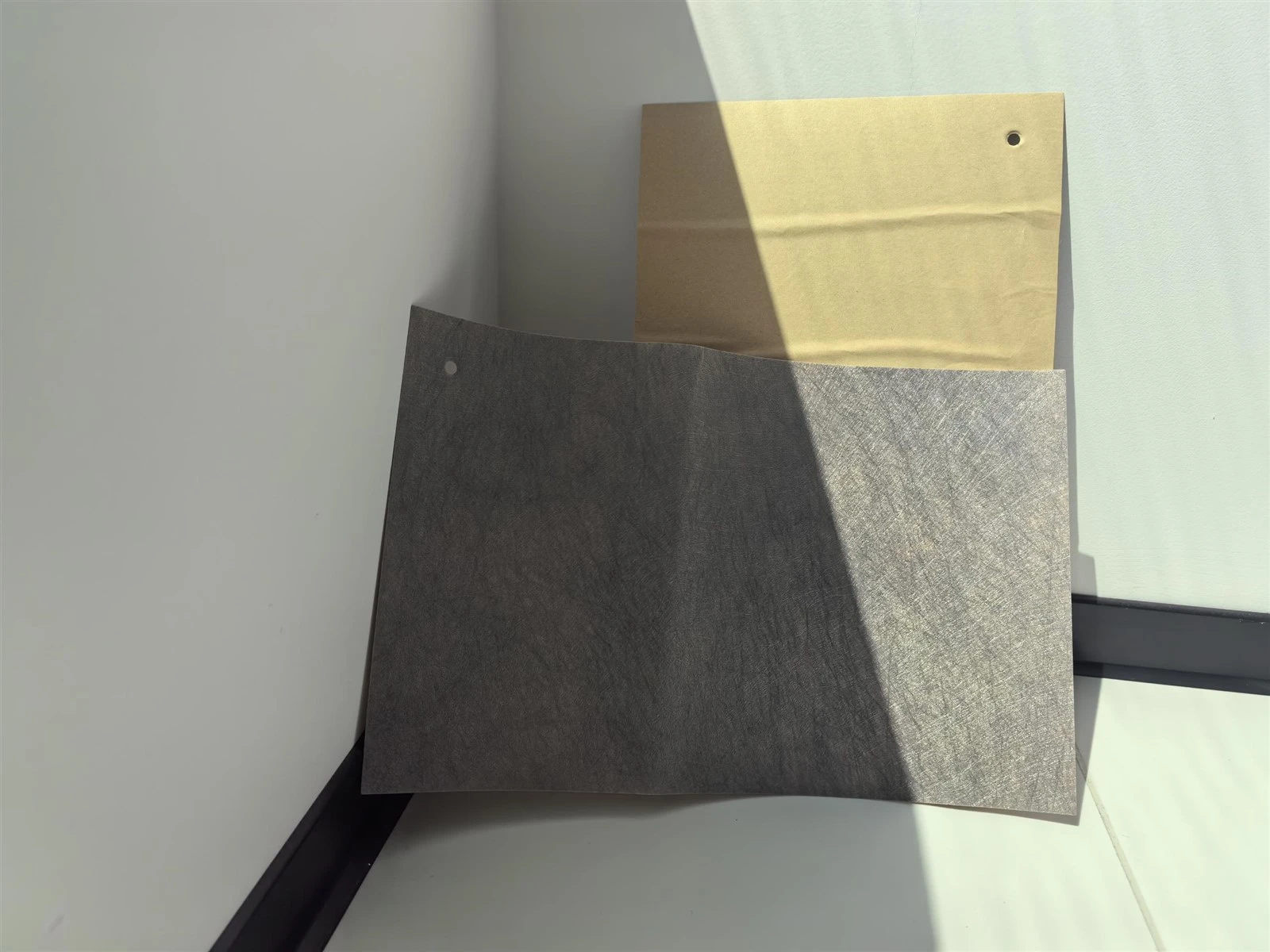

Industrial fiberglass reinforcement with adhesive glue (0.2 mm – 1.5 mm). Woven glass fiber mesh with pressure-sensitive or hot-melt adhesive for footwear, leathercraft & construction. Free samples!

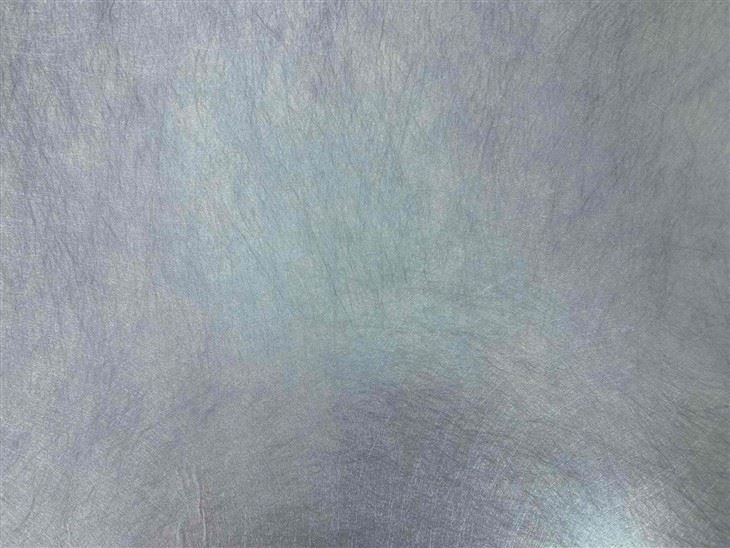

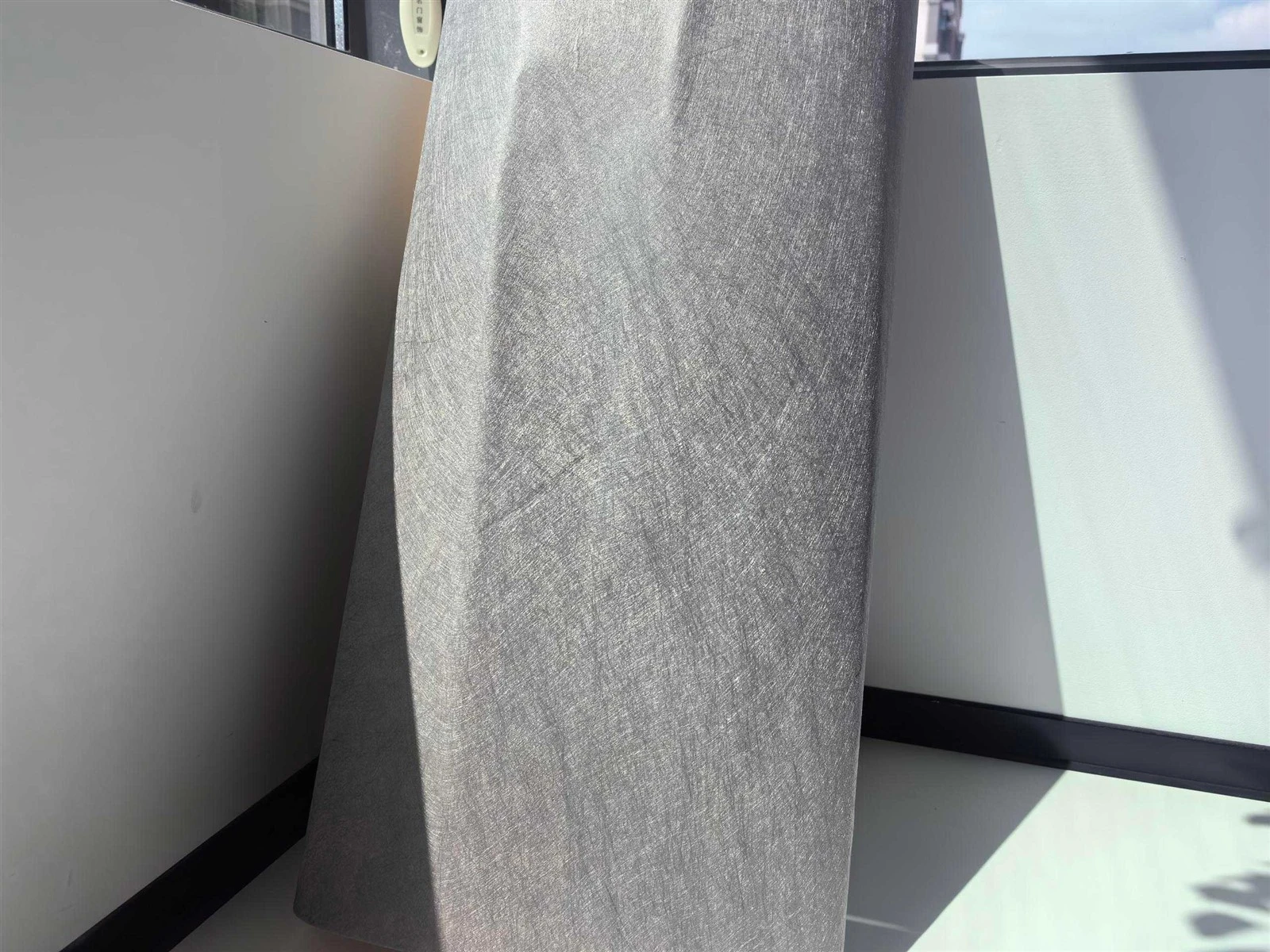

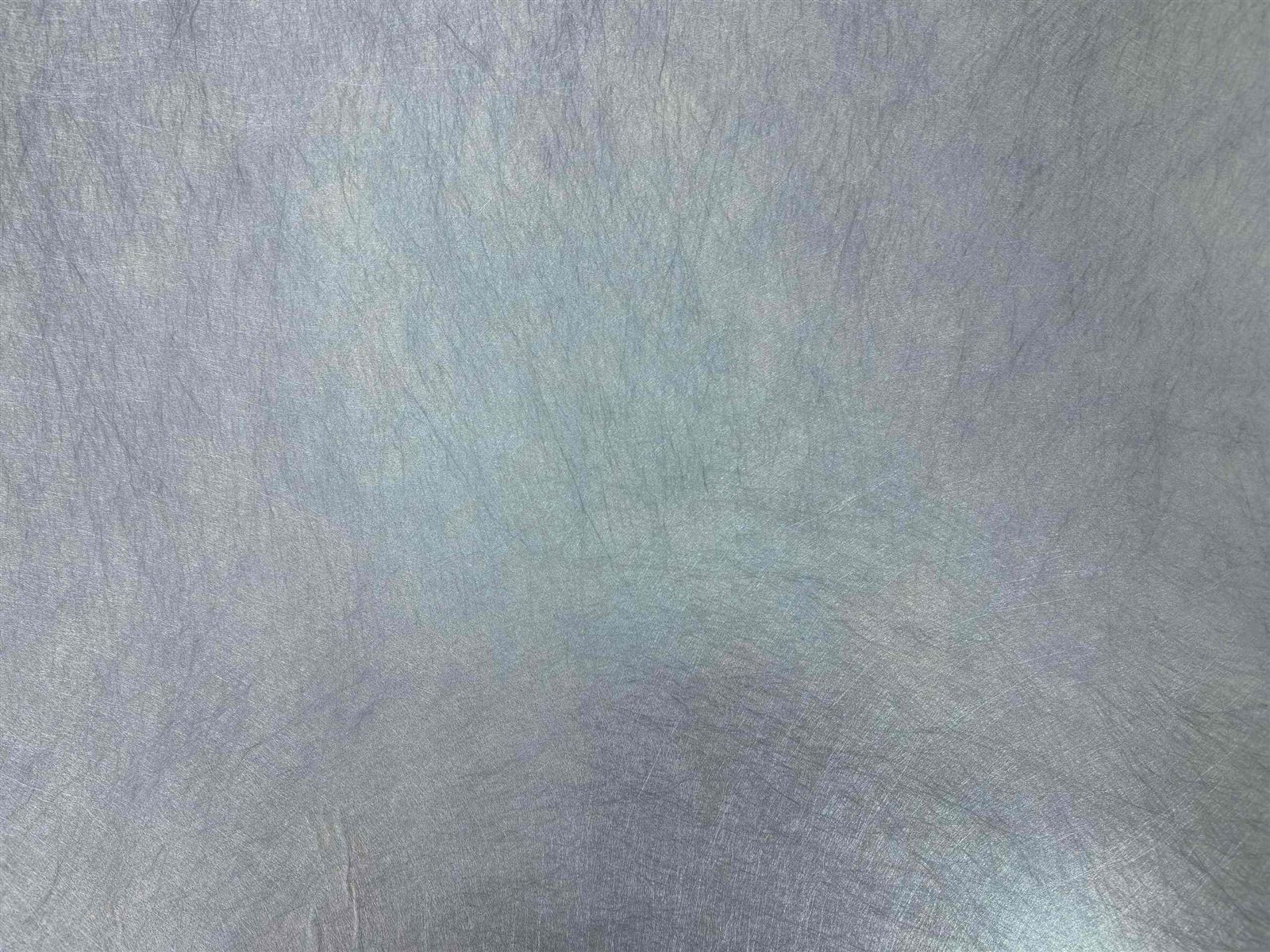

Fiberglass reinforcement with adhesive glue is a high-tensile, ultra-dimensional structural composite designed to eliminate stretching, tearing, and mechanical sagging across high-stress industrial applications. Manufactured by coating high-purity woven or mesh fiberglass fabrics with pressure-sensitive (PSA) or heat-activated (hot-melt) adhesive coatings, this material provides extreme tensile strength while remaining thin and lightweight. Because glass fibers possess near-zero elongation under tension, this reinforcement prevents leather, synthetic upper materials, seam joints, and composite panels from expanding or deforming over time. Solamni supplies continuous roll goods (20 mm – 1,200 mm cut tape widths or full 1.40 m roll widths) with strict gauge options (0.20 mm – 1.50 mm) to support automated taping machinery, hand-application, and CNC die-cutting.
Technical Specifications Matrix
| Engineering Property | Physical / Chemical Specification Benchmark | Test Standard Reference |
|---|---|---|
| Substrate Construction | High‑Tenacity Filament Woven / Mesh Glass Fiber Fabric | ISO 2060 / ASTM D579 |
| Adhesive Coating Options | Pressure‑Sensitive Adhesive (PSA Tack) or Thermal Hot‑Melt Film (EVA/TPU) | ISO 2286‑1 |
| Thickness Selection | 0.20 mm – 1.50 mm (± 0.02 mm) | ISO 23529 |
| Tensile Strength (Warp/Weft) | ≥ 1,800 N / 5 cm / ≥ 1,500 N / 5 cm | ISO 13934‑1 / ASTM D5035 |
| Elongation at Break | ≤ 2.5% (Near‑zero mechanical stretch under high tension) | ISO 13934‑1 |
| Initial Adhesive Tack / Peel | Pressure‑Sensitive: ≥ 18 N/25mm / Hot‑Melt: ≥ 35 N/25mm | PSTC‑101 / ISO 2411 |
| Thermal Resistance | –40°C to +180°C (Zero structural degradation or adhesive bleed) | ASTM D1790 / SATRA TM404 |
| Fire & Electrical Rating | Incombustible Glass Core, Non‑Conductive, EN ISO 20345 Non‑Metallic | ISO 1182 / EN ISO 20345 |
| Environmental Safety | REACH SVHC compliant, Solvent‑Free Adhesive, Low VOC Emission | ISO 17025 |
Achieving uniform adhesive distribution without clogging the glass fiber lattice or reducing flex fatigue requires precision roll-to-roll coating:
Manufacturing Process Flow:
- Filament Fiberglass Weaving
- Surface Silane Coupling Agent Coating
- Hot‑Melt / PSA Adhesive Slot‑Die Extrusion
- Release Liner Lamination & Quality Testing
- Slitting into Narrow Tapes / Sheet Stock
- Surface Pre‑Treatment: Filament glass yarns are woven into a balanced grid or solid weave and treated with a silane coupling agent to maximize chemical adhesion.
- Precision Slot‑Die Coating: High‑tack pressure‑sensitive adhesive or hot‑melt film is applied directly to one or both faces under controlled thermal conditions.

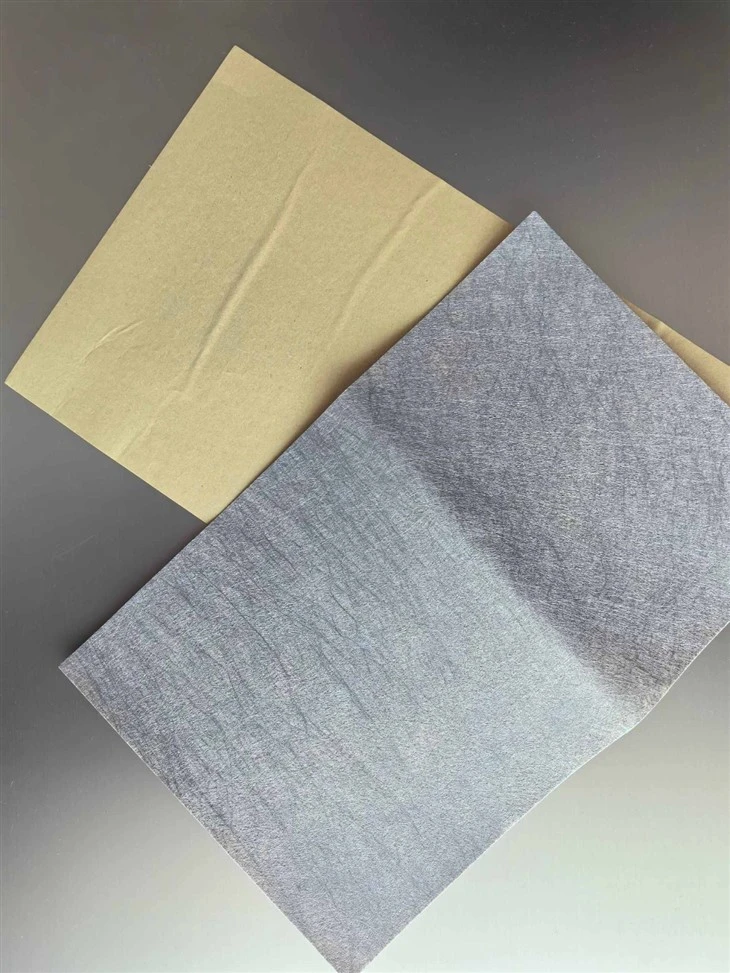

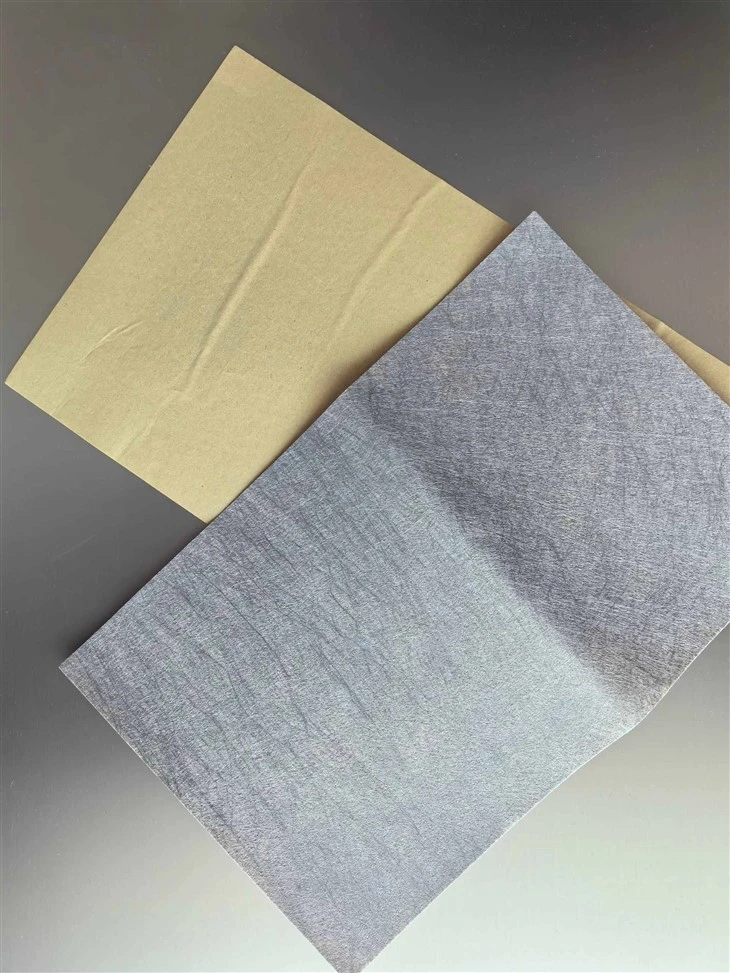

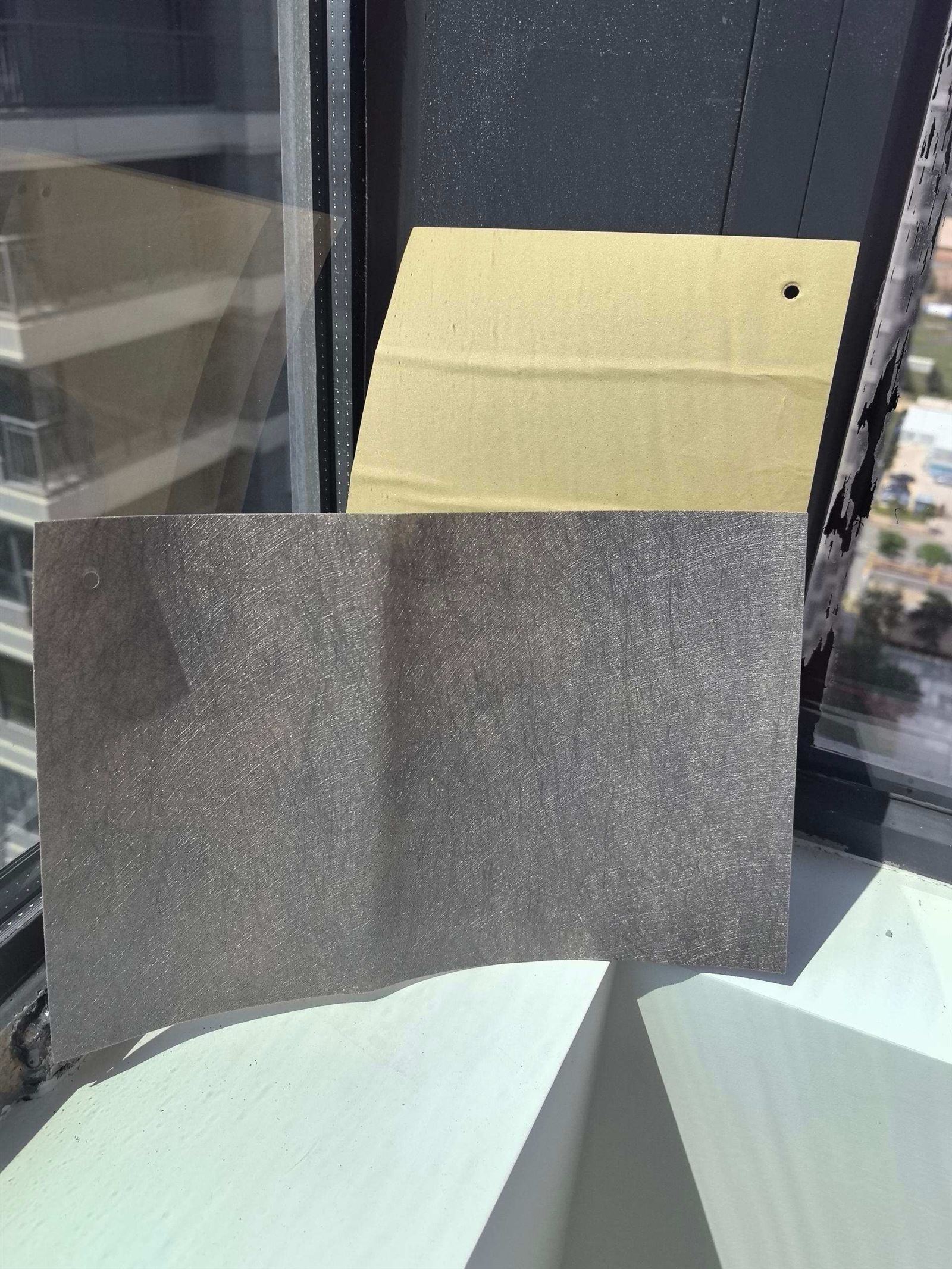

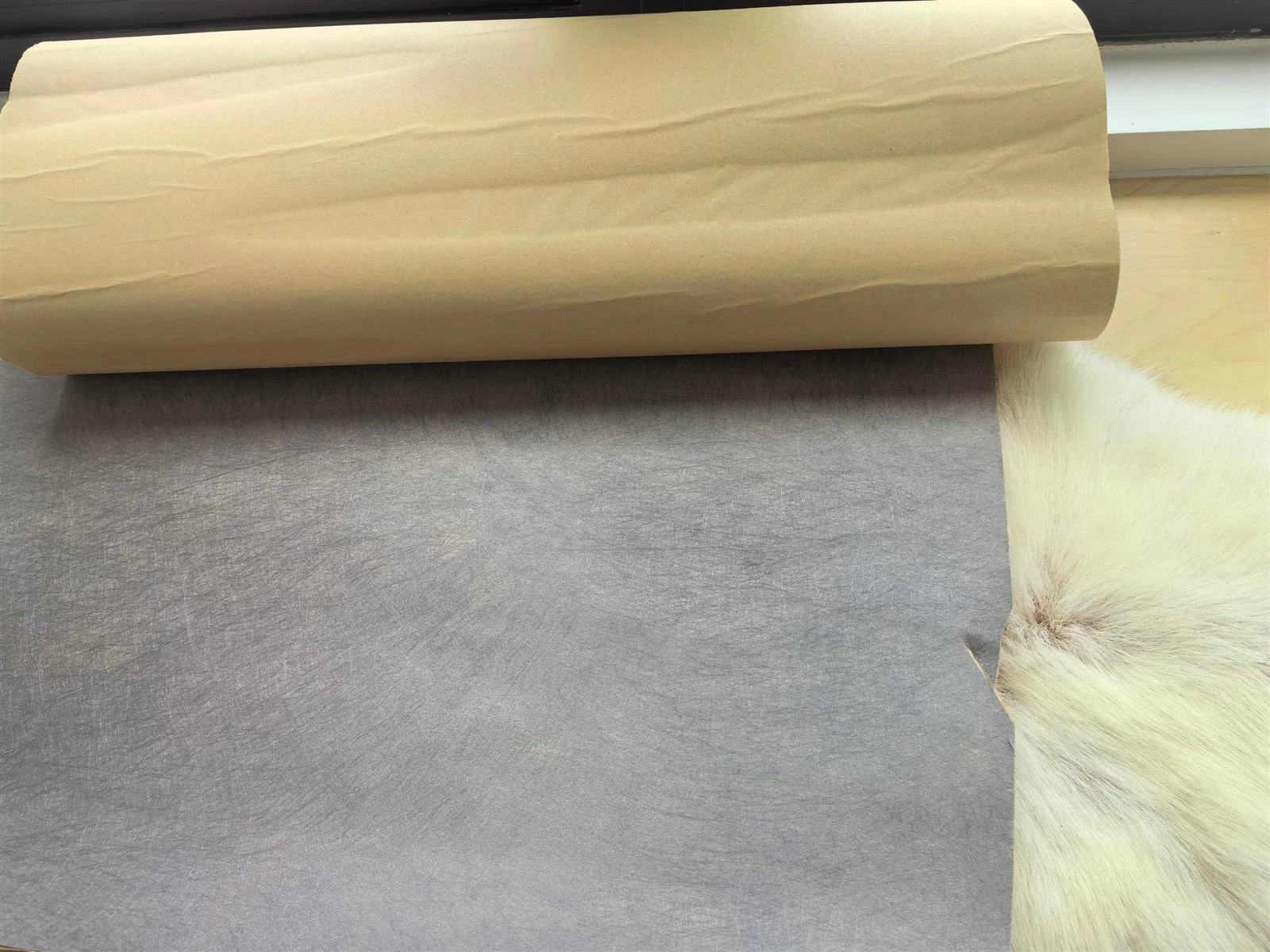

- Release Liner Lamination: A silicone‑coated protective release paper or film is laminated over the adhesive layer, allowing continuous winding into roll stock for automated tape‑dispensing machines
Industrial Application Scenarios
Solamni fiberglass reinforcement with adhesive glue is specified across demanding manufacturing sectors:
Footwear Seam & Eyelet Reinforcement: Self‑adhesive backing tapes applied along shoe eyelet stay lines, seam joins, and collar edges to prevent leather stretch and lace‑hole tear‑out.
Leather Goods & Belt Structural Strips: Thin‑gauge (0.2 mm – 0.5 mm) self‑adhesive glass fiber tapes laminated inside luxury leather belt cores, handbag handles, and strap folds to prevent sagging.
Building Construction & Composite Panel Jointing: Self‑adhesive glass fiber mesh tapes used for drywall jointing, concrete crack reinforcement, and insulating panel encapsulation.
FAQ
Q1: What is the advantage of self-adhesive PSA versus thermal hot-melt adhesive on fiberglass reinforcement?
A1: Pressure‑sensitive adhesive (PSA) provides immediate cold tack-ideal for fast hand placement or inline taping during leather assembly without requiring heating equipment. Hot‑melt adhesive requires thermal activation (90°C – 130°C) but delivers significantly higher permanent bond strength and flex endurance once cooled.
Q2: Will this fiberglass tape fray or shred when cut into narrow strip widths?
A2: No. Our advanced resin‑binder system locks the warp and weft filaments together at every intersection, ensuring clean edge slitting down to 5 mm widths without loose glass fibers or fraying.
