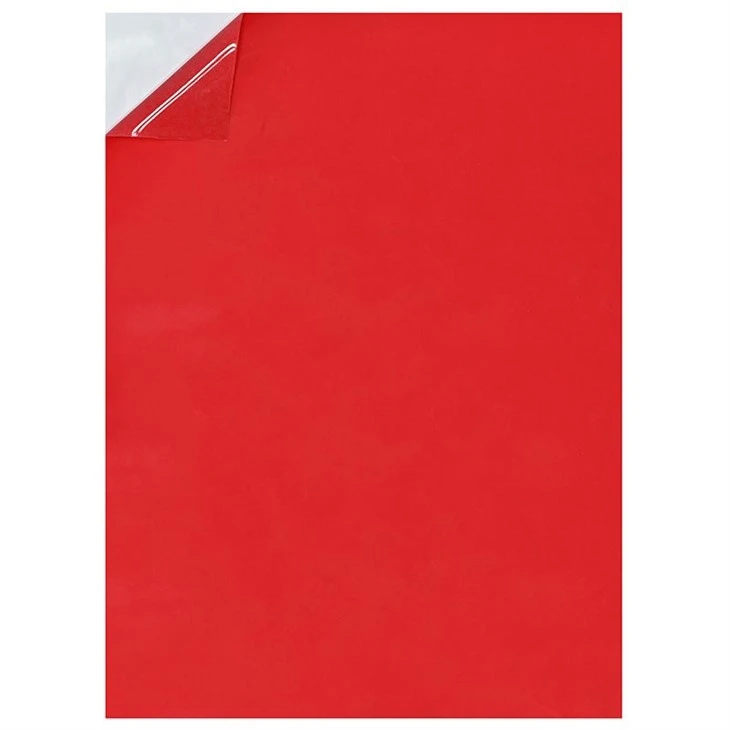

TPU lamination film for shoe upper bonding & apparel lamination. Thickness 0.05–3.0mm, melting point 65°C–120°C, peel strength ≥8N/mm. OEKO-TEX, REACH, RoHS. MOQ 500m.
product details
Solamni leather Introducing Our EVA composite nonwoven insole board is a laminated structural component consisting of a cellulose fiber nonwoven base bonded to an EVA foam layer via heat compression. The nonwoven layer provides dimensional stability and stitch-tear resistance, while the closed-cell EVA layer (density 0.91–0.93 g/cm³) delivers shock absorption and moisture resistance. Solamni supplies this composite in custom thicknesses (0.4mm–3.0mm EVA layer) and sheet sizes (1.0m × 1.5m standard), with REACH compliance and SATRA/ISO test documentation for footwear OEMs worldwide.
Technical Specifications Matrix
| Property | Specification | Test Standard |
|---|---|---|
| Material Type | Thermoplastic Polyurethane (TPU) – Polyester or Polyether base | FTIR |
| Thickness Range | 0.05mm – 3.0mm ±0.01mm (customizable) | Micrometer / ISO 4593 |
| Roll Width | 1.37m (54″) / 1.4m (55″) | In-house |
| Shore Hardness | 75A – 95A (customizable) | ASTM D2240 / ISO 868 |
| Melting Point Range | 65°C – 120°C (low-temperature activation) | DSC / ISO 11357 |
| Tensile Strength at Break | 30 – 60 MPa | ASTM D412 / ISO 527 |
| Elongation at Break | 300% – 600% | ASTM D412 / ISO 527 |
| Peel Strength (Fabric-to-Fabric) | ≥8 N/mm (after lamination) | ISO 2411 / SATRA TM401 |
| Moisture Vapor Transmission Rate | 650 – 1,500 g/m²/day (depending on thickness & grade) | ASTM D6701 / JIS L1099 |
| Hydrostatic Head (Waterproofness) | >10,000 mmH₂O (0.012–0.025mm film) | ISO 811 / AATCC 127 |
| Hydrolysis Resistance | ≥5 years (Jungle Test: 70°C / 95% RH) | ISO 1419 / SATRA TM65 |
| Low-Temperature Flex | ≥50,000 cycles at -20°C (no cracking) | ISO 5402 / SATRA TM55 |
| Abrasion Resistance | ≥5,000 cycles (Taber H-22 wheel, 0.5kg load) | ASTM D4060 / ISO 5470 |
| UV / Anti-Yellowing | Grade 4–5 (aliphatic grade) | ASTM G155 / ISO 105-B02 |
| Processing Methods | Heat press lamination / High-frequency welding / Roller lamination | - |

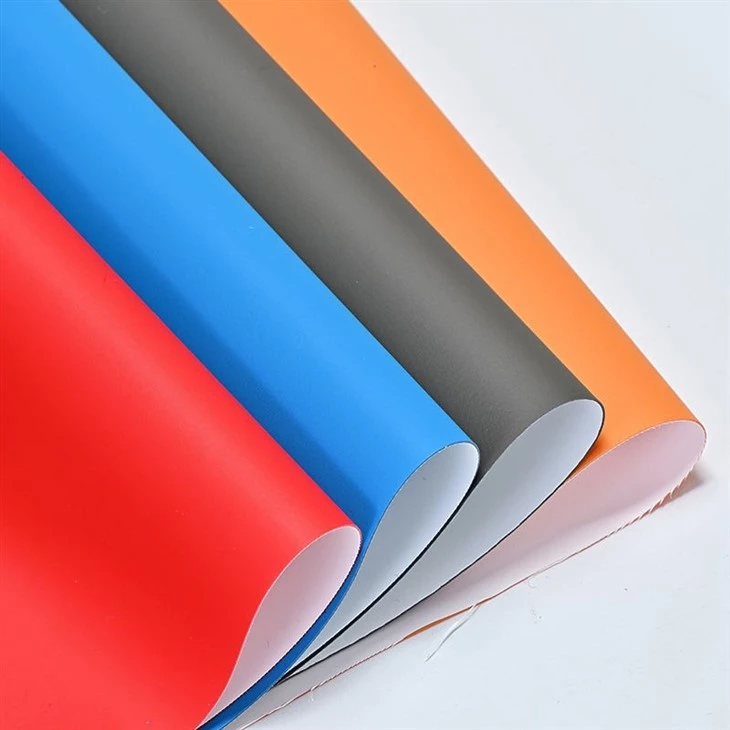

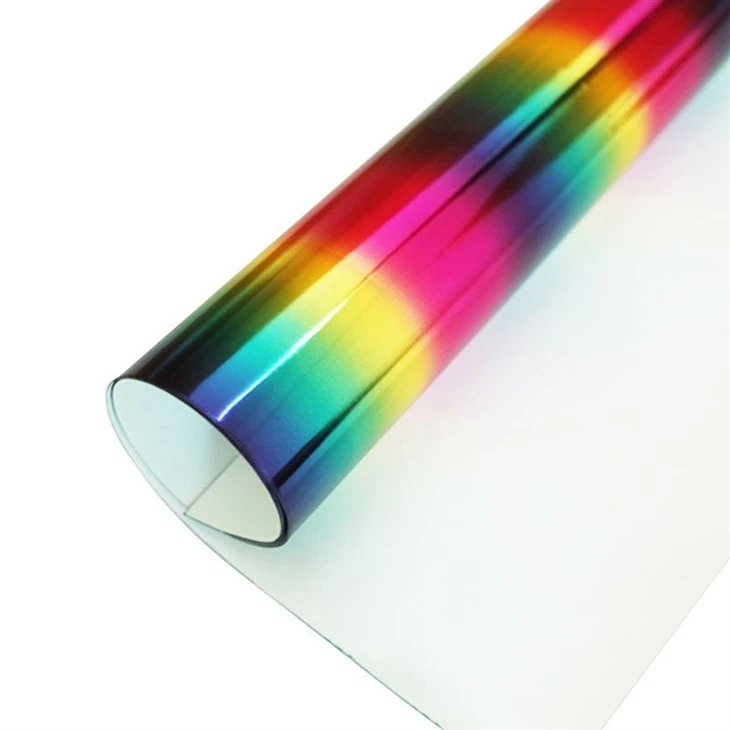

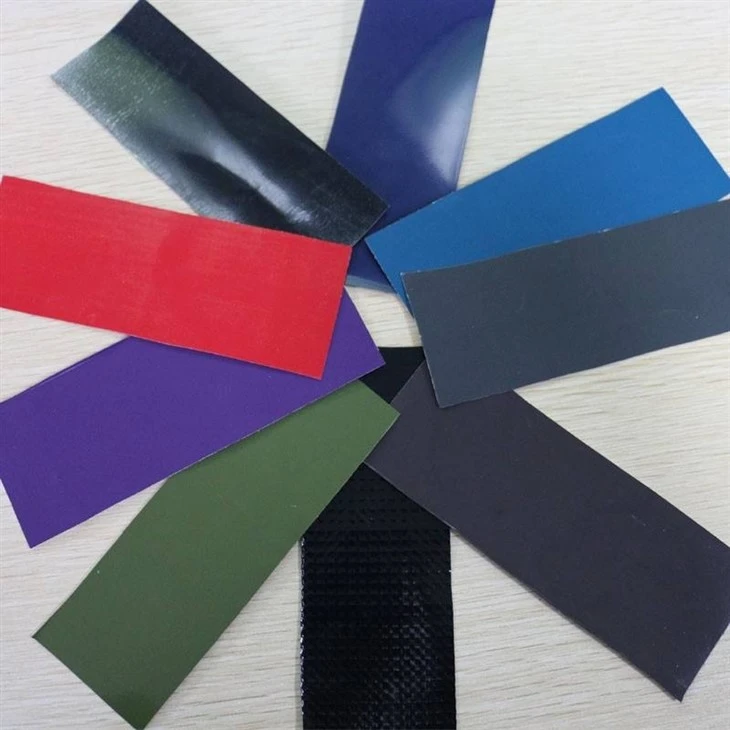

| Film Appearance | Transparent / Matte / White / Custom colors | Visual / Colorimetry |
| Environmental Certifications | OEKO-TEX Standard 100, REACH (SVHC <0.1%), RoHS (phthalates <0.1%), solvent-free | EU 1907/2006 / EU 2015/863 |
Solamni manufactures TPU lamination film via precision calender extrusion lines with closed-loop thickness control. Each production batch undergoes the following validation protocols:
Dimensional & Visual Inspection:
Thickness is measured at 10 points per linear meter using a digital micrometer (±0.01mm accuracy). Batch acceptance requires ≥98% of readings within specified tolerance.
Film surface is inspected for pinholes, fisheyes, and contamination under transmitted light. Width is verified with electronic edge-guide sensors.
Mechanical & Adhesion Performance:
Peel Strength: Laminated specimens (TPU film bonded to polyester/cotton fabric) are tested on a UTM at 100mm/min per ISO 2411. Minimum acceptance: 8 N/mm. Bonding parameters: 120°C–140°C, 3kg pressure, 15 seconds dwell time.
Tensile & Elongation: Film samples are pulled at 200mm/min per ASTM D412. Acceptance: tensile strength ≥30MPa, elongation ≥300%.
Flex Fatigue: Laminated composites undergo 50,000 dynamic flex cycles on a Bally flexometer at -20°C. Zero delamination or cracking required.
Waterproof & Breathability Validation:
Hydrostatic Head: Film samples (0.012–0.025mm) are tested per ISO 811. Acceptance: >10,000 mmH₂O.
MVTR: Measured per ASTM D6701. Acceptance: ≥650 g/m²/day.
Environmental & Chemical Compliance:
All TPU resins are screened for phthalates (≤0.1% per REACH Annex XVII), heavy metals (Pb ≤90ppm, Cd ≤10ppm), and formaldehyde (≤75mg/kg).
Solvent-free production ensures zero VOC emissions. OEKO-TEX Standard 100 certification (skin-contact safety) available upon request.
Factory Traceability:
Each master roll receives a unique batch number linked to extrusion line ID, resin batch certificate, thickness profile log, and QC test results. Retained samples (A4-size cutouts) archived for 36 months. Digital Certificate of Analysis issued within 48 hours of production.
Industrial Application Scenarios
Footwear Manufacturing (Primary)

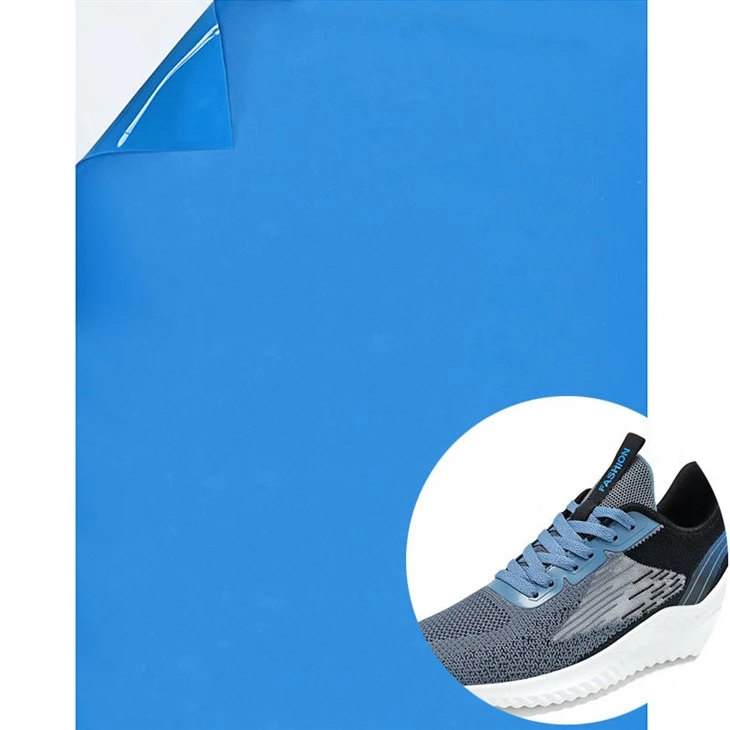

Shoe upper lamination: Bonds mesh, knit, leather, and PU leather layers into seamless, stitch-free uppers. Film thickness 0.05–0.20mm for lightweight athletic footwear.
Seamless shoe construction: Replaces traditional sewing with heat-activated bonding, reducing labor costs and eliminating needle-hole weakness.
Waterproof bootie construction: Hydrophilic TPU membrane (MVTR ≥650 g/m²/day) laminated between outer fabric and lining for waterproof-breathable footwear.
Reinforcement & support: Internal heel counters and toe puffs using 0.3–1.0mm TPU film for structural integrity.
Decorative applications: High-frequency welded 3D logos, brand labels, and lace reinforcements.
Apparel & Garment Manufacturing (Secondary)
Outerwear & sports apparel: Waterproof-breathable membrane lamination for rain jackets, ski wear, and running gear.
Seamless garment construction: Bonding of fabric panels without stitching for athletic wear and shapewear.
Heat transfer & embellishment: TPU film as carrier for heat-applied logos, reflective trim, and decorative patches.
Other Applications
Bags & luggage: Lamination of nylon/canvas for water-resistant backpacks and travel bags.
Automotive interiors: Fabric-to-foam bonding for seat covers and headliners.
Medical textiles: Skin-contact breathable films for wound care and wearable devices.
Product Parameter (specification)
| Material | 100% thermoplastic polyurethane |
| Thickness | 0.05MM-1.2MM |
| Width | 1.37M/1.4M |
| Colors | Customized Color |
| Feature | Soft, wear resistant, waterproof and elastic. |
| Use | Shoes upper |
| MOQ | 1000Meters |
| Term of Payment | By T/T, 30% deposit and 70% balance payment before delivery |
| Place of Origin | Fujian,China |
| Quanzhou | |
| Brand Name | Solamni |
shows Products
Hot Tags: apparel shoe tpu lamination film, China apparel shoe tpu lamination film manufacturers, suppliers, factory
Looking For High-quality Related Shoe Materials And Industrial Materials. We Are A Reliable B2b Supplier, Offering Personalized Customization Services, Competitive Prices And Fast Delivery Services.
Why Choose Us
We specialize in providing material high-quality for industrial applications. Our focus on B2B sourcing ensures that you get the best prices for large orders, with the flexibility to customize the fabric to meet your specific needs. Whether you require bulk quantities for production or specialized orders, we can help you achieve your goals with fast delivery and exceptional customer support.
Bulk Sourcing: Competitive pricing for large-scale orders.
Customization: Flexible solutions tailored to your industry needs.
Global Shipping: Fast, reliable delivery to international markets.
High-Quality Standards: Rigorous testing and quality assurance to ensure performance and durability.
Frequently Asked Questions (FAQ)
What is the minimum activation temperature for your TPU lamination film, and how does it protect heat-sensitive shoe upper materials like fly-knit?
Low-temperature grade activates at 65°C–95°C. This prevents shrinkage, discoloration, or melting of nylon/polyester knits. Standard activation: 120°C–140°C. We recommend small-scale trials to establish your specific process window.
Can your TPU film withstand repeated washing and hydrolysis degradation in outdoor footwear?
Yes. Polyether-based TPU grades offer ≥5 years hydrolysis resistance (70°C/95% RH Jungle Test). Peel strength retention after 50 wash cycles exceeds 85%. Saltwater and sweat resistance validated per ISO 1419.
What is the MOQ and lead time for a custom-colored TPU lamination film at 0.15mm thickness for a 5,000-pair shoe production run?
Standard MOQ: 500 meters per color. Custom color matching (Pantone): 7–10 business days. Bulk production: 12–18 business days after sample approval. Sample rolls (50 meters) available for process validation.
